Ecore Integrity Motivate Rubber Flooring | PVC-Free Calendered Rubber Sheet

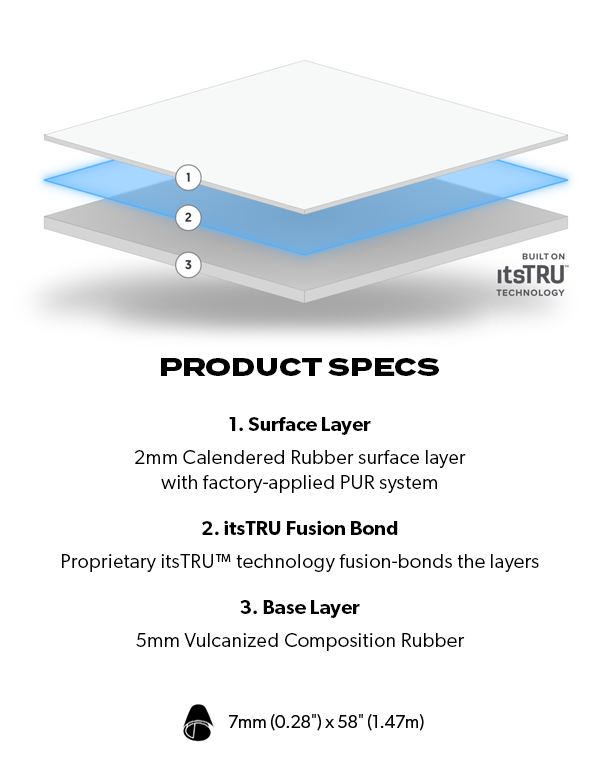

Ecore Integrity Motivate is a 7 mm (0.28 in) PVC-free rubber sheet floor that fusion-bonds a PUR-coated 2 mm calendered rubber surface layer to a 5 mm vulcanized composition rubber (VCR) Motivate base layer using itsTRU® technology. It is supplied in 58 in (1.47 m) wide rolls and designed to reduce the severity of fall-related injuries in clinical, therapy and public spaces.
Hygienic, Quiet & Comfortable Underfoot
The factory-applied PUR system and heat-welded seams help create a sterile, easy-to-clean surface, while the 5 mm VCR base layer adds ergonomic and acoustic performance. Typical Deltec field results show 11.2% force reduction and 67.4% energy restitution, and the floor is quiet underfoot (IIC 52, Delta IIC 24). It is FloorScore certified, contains 60% post-consumer recycled content, and comes in 14 calming colors.
- 7 mm (0.28 in) rubber sheet: 2 mm calendered rubber surface layer plus 5 mm VCR base layer
- 58 in (1.47 m) wide rolls
- Factory-applied PUR system with heat-welded seams

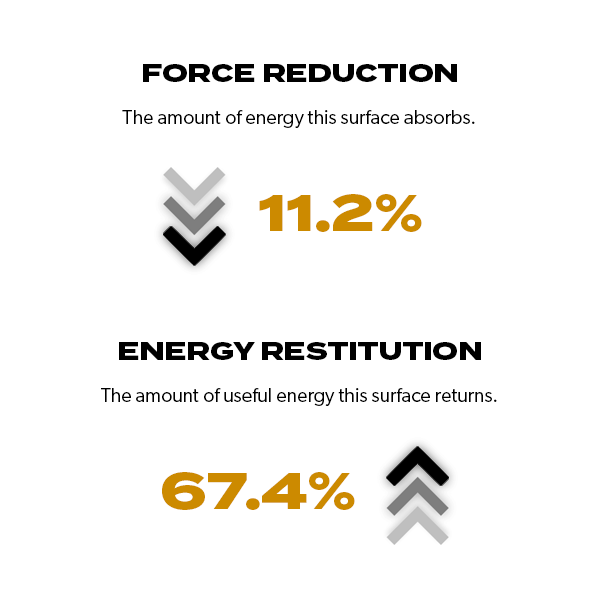

- 11.2% force reduction and 67.4% energy restitution
- PVC-free construction, FloorScore certified

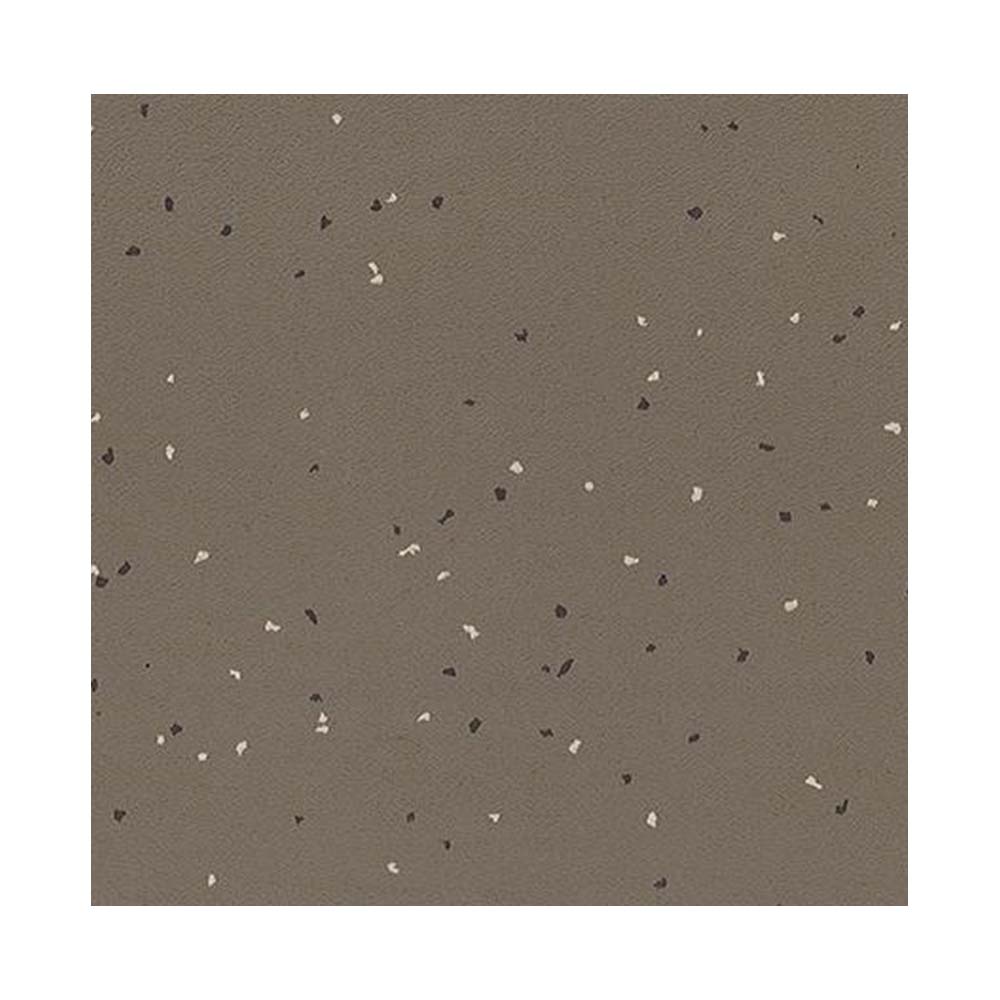

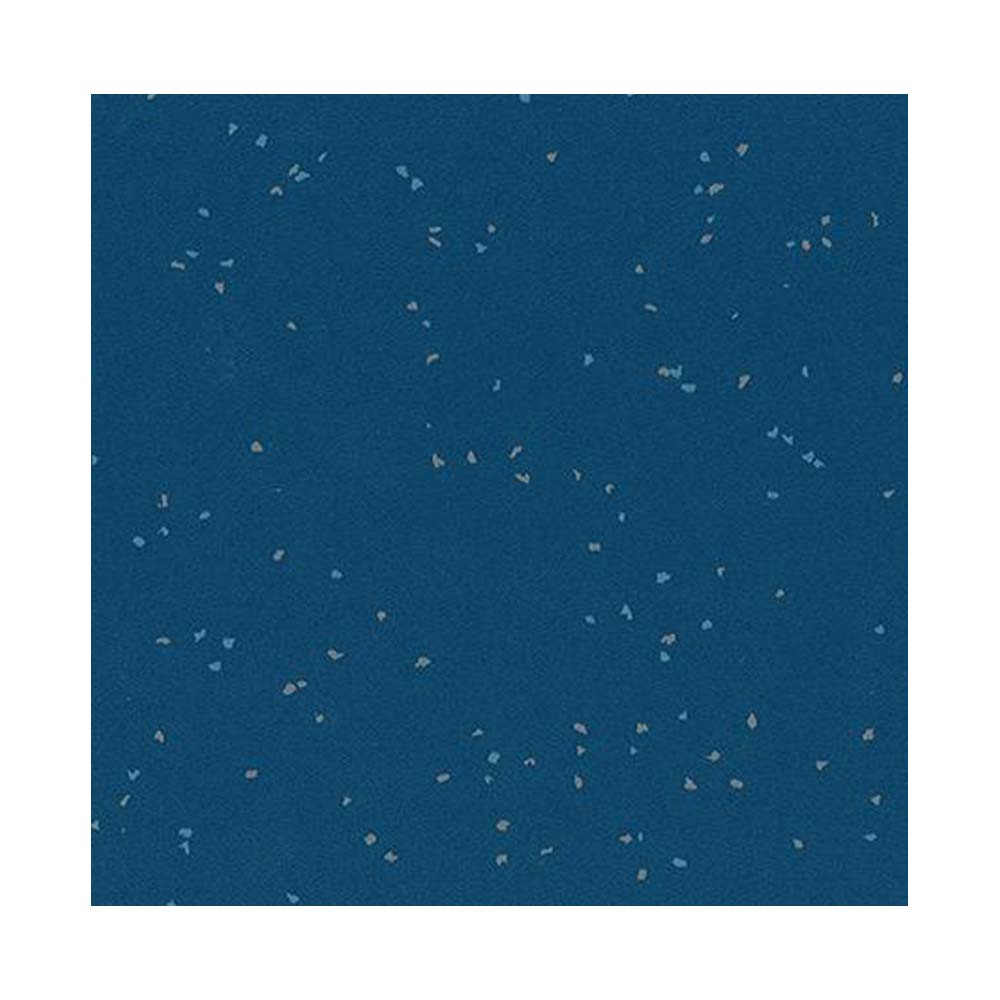

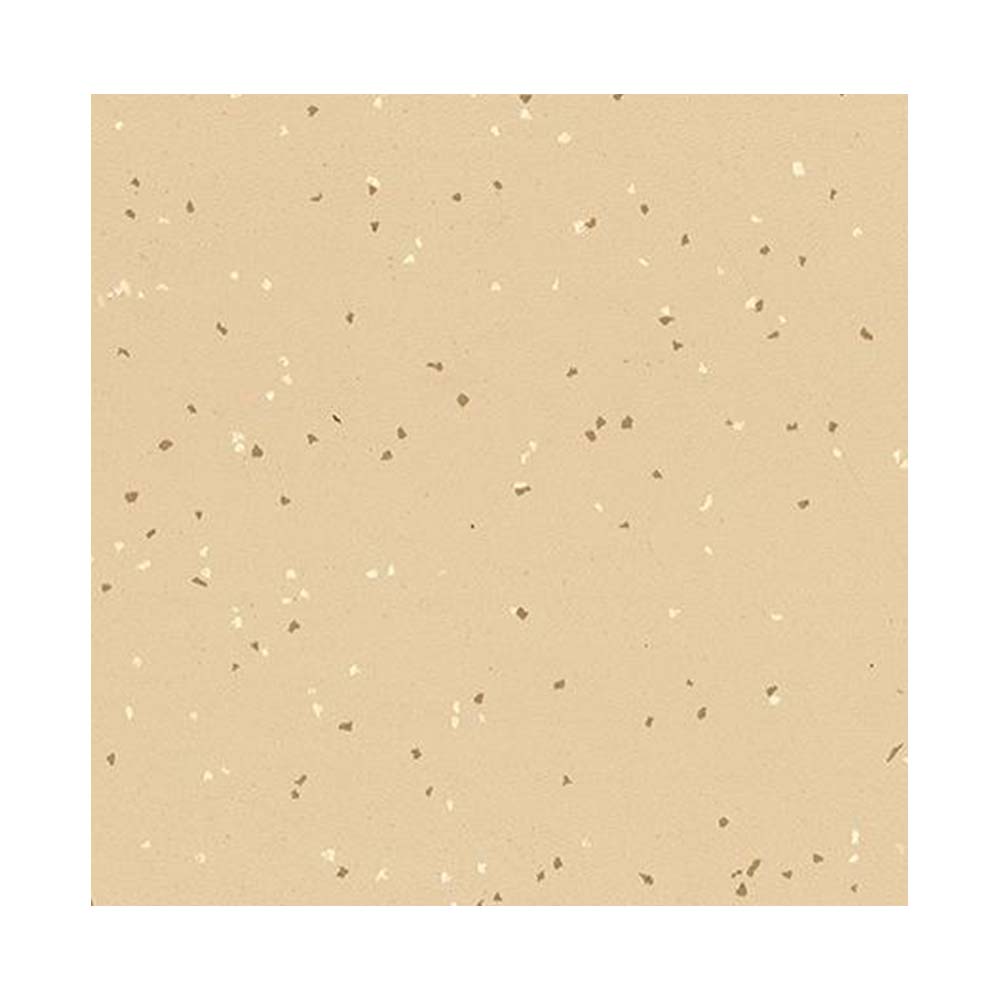

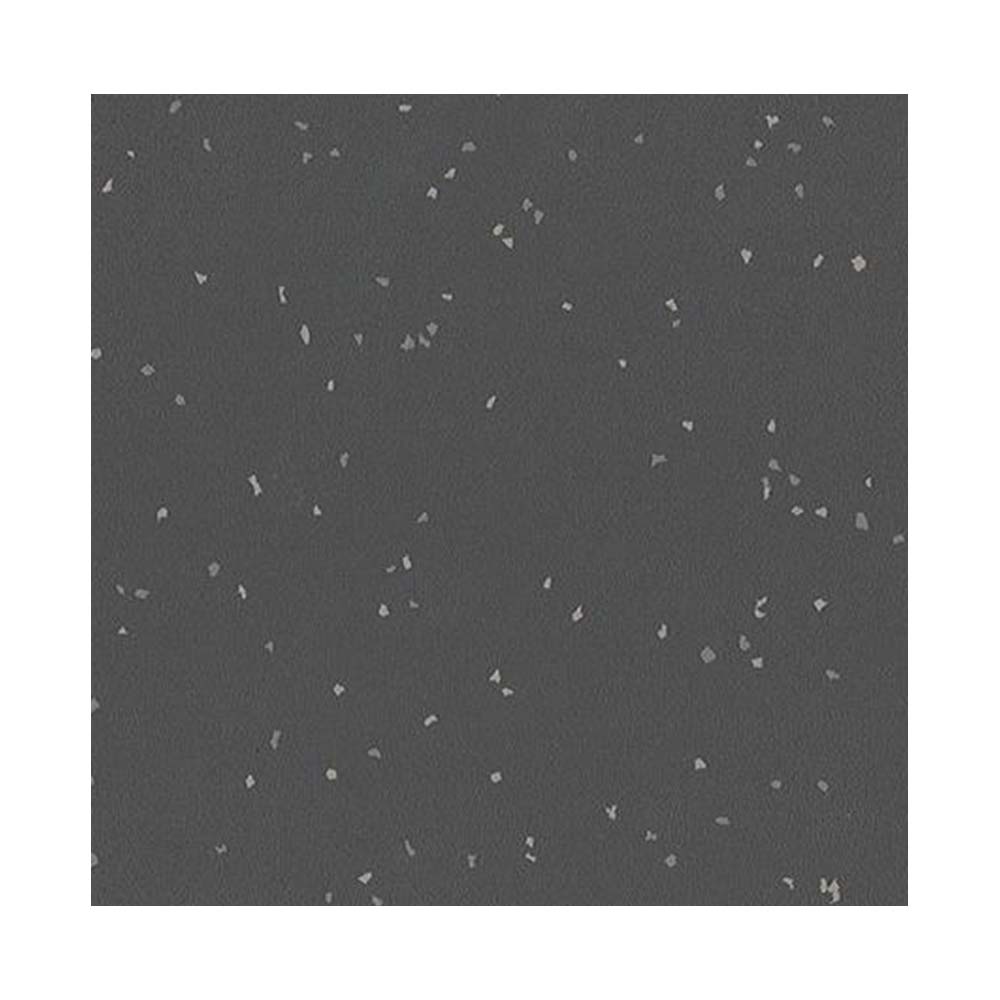

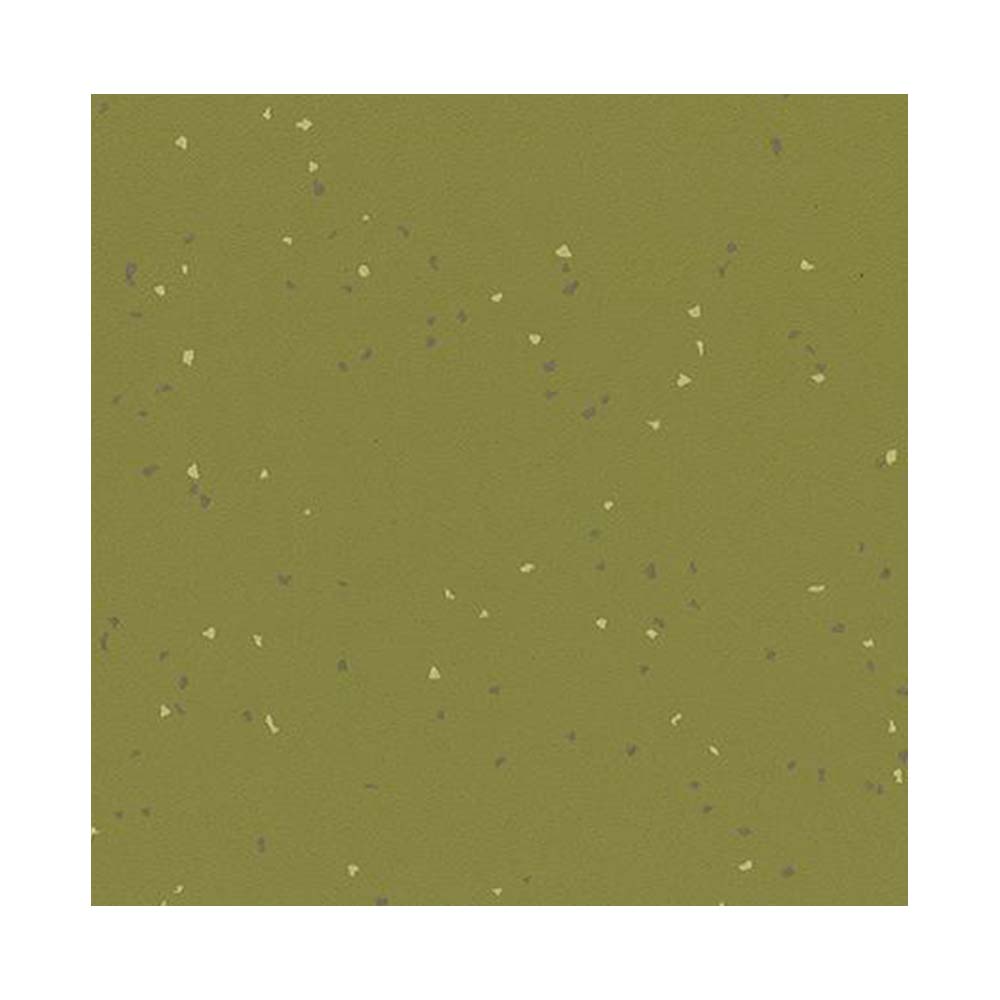

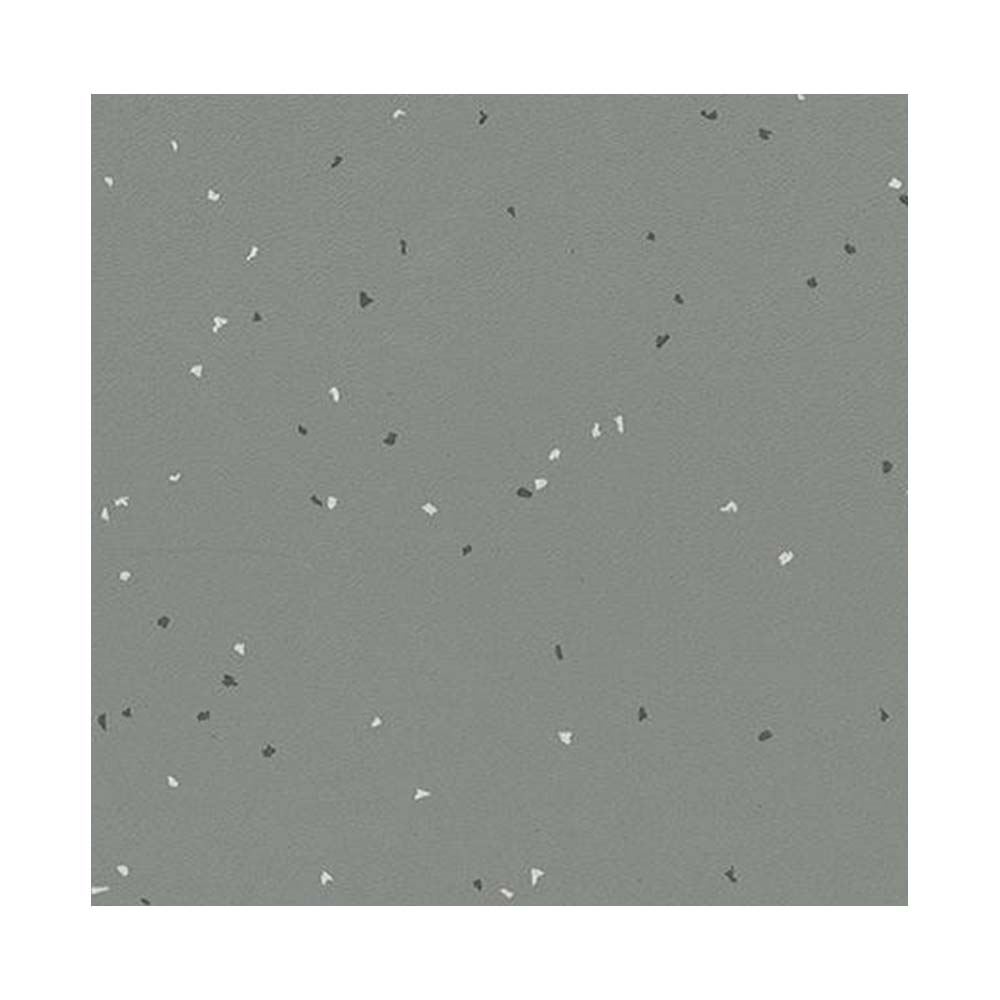

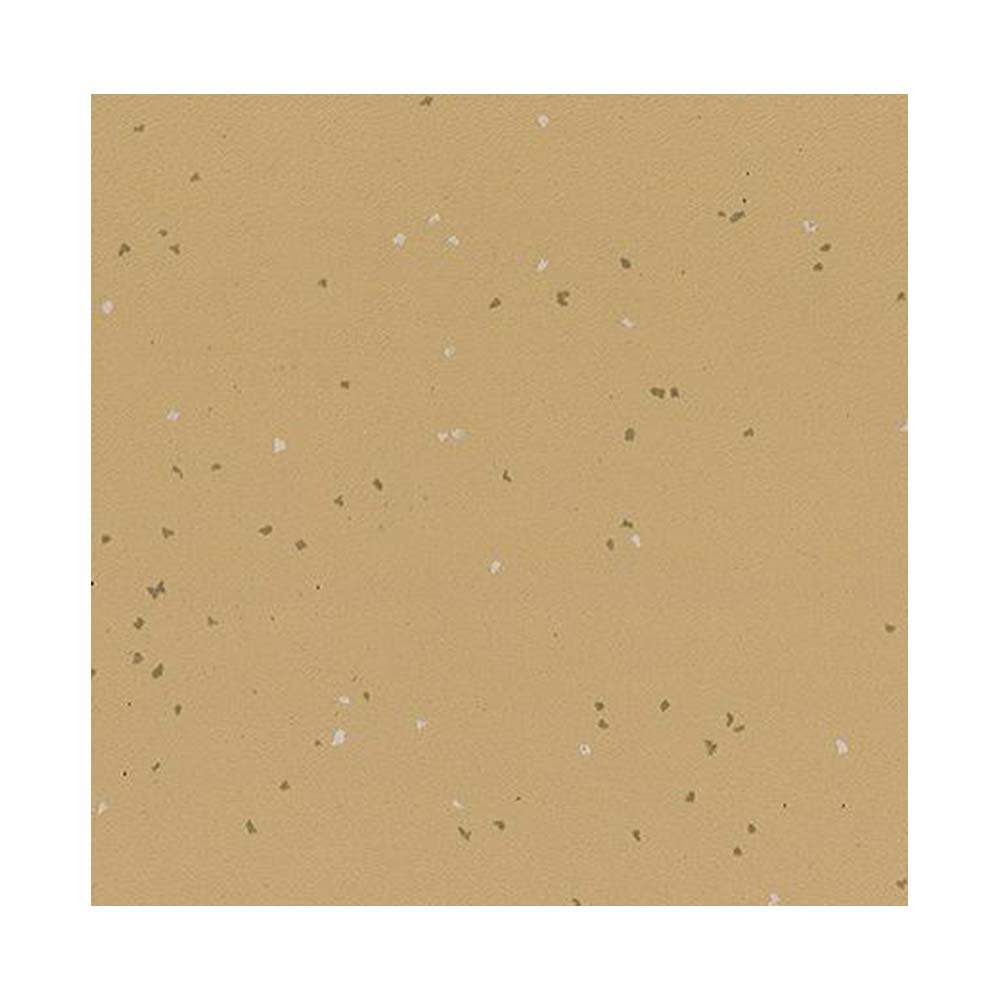

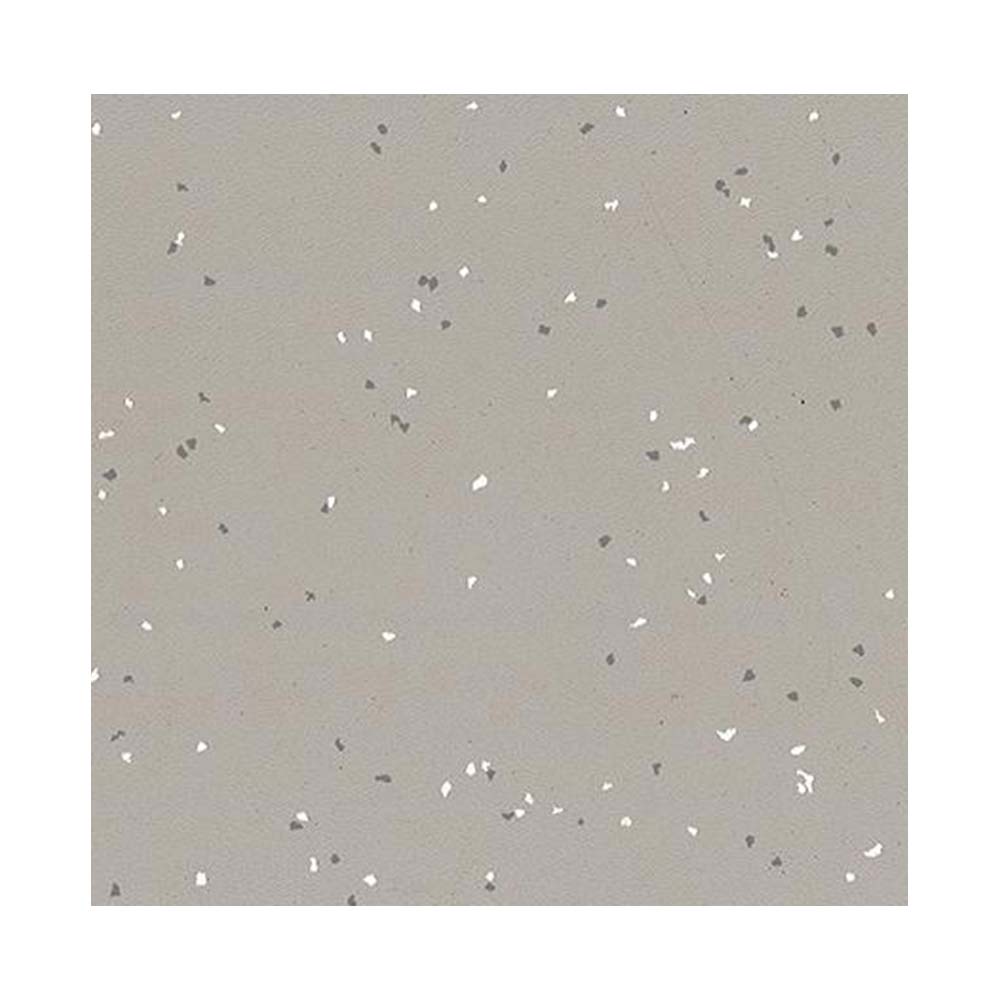

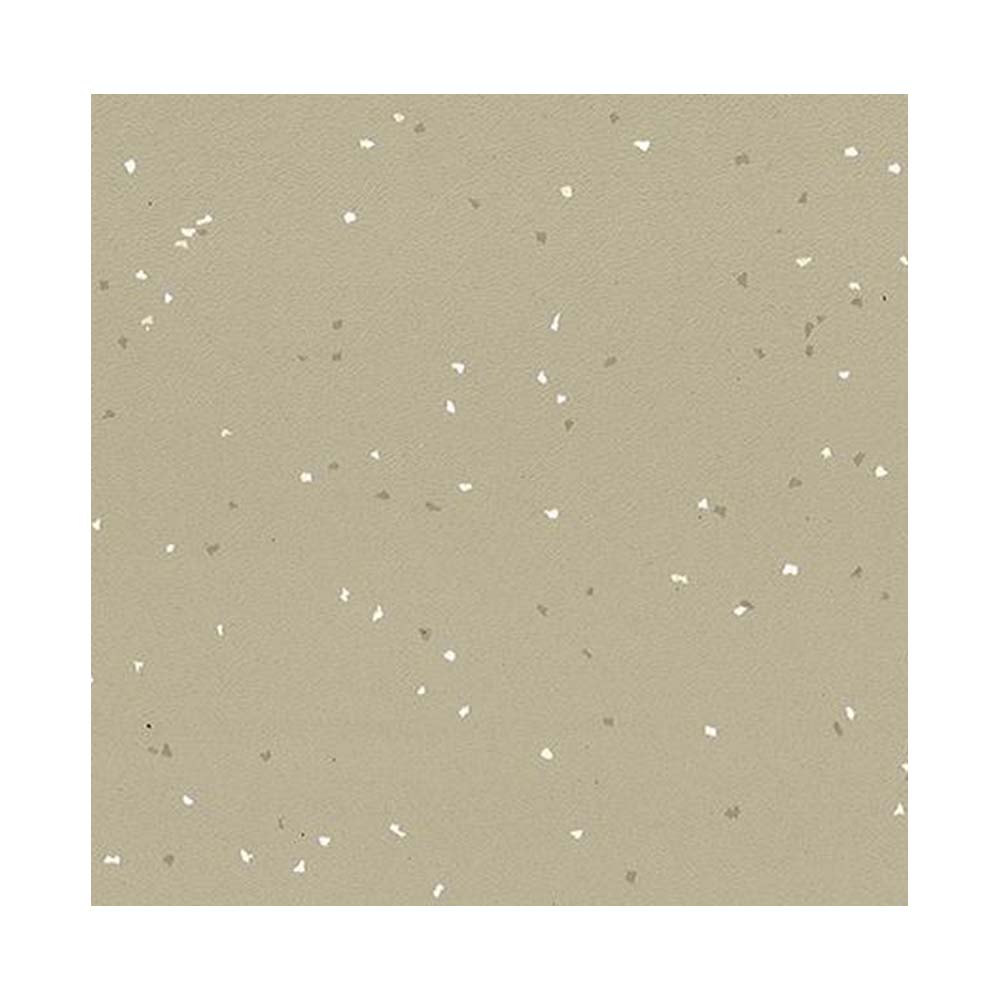

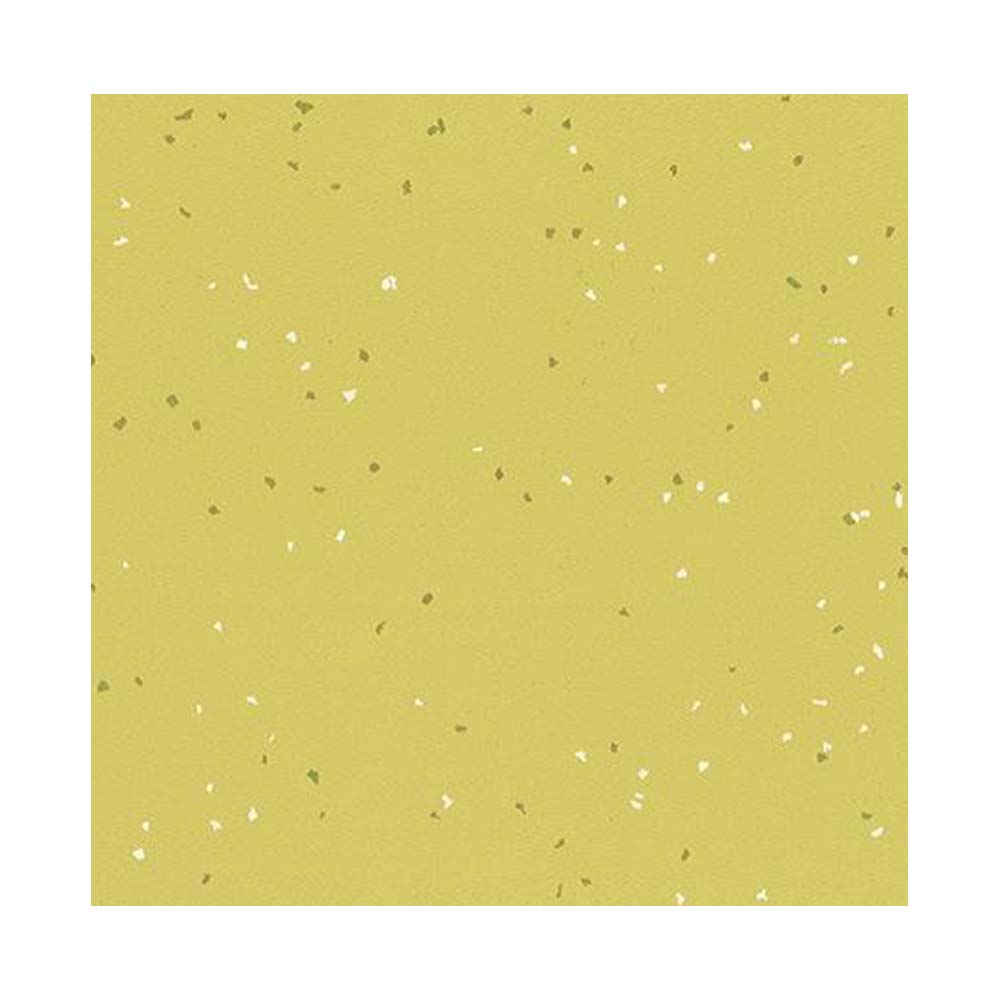

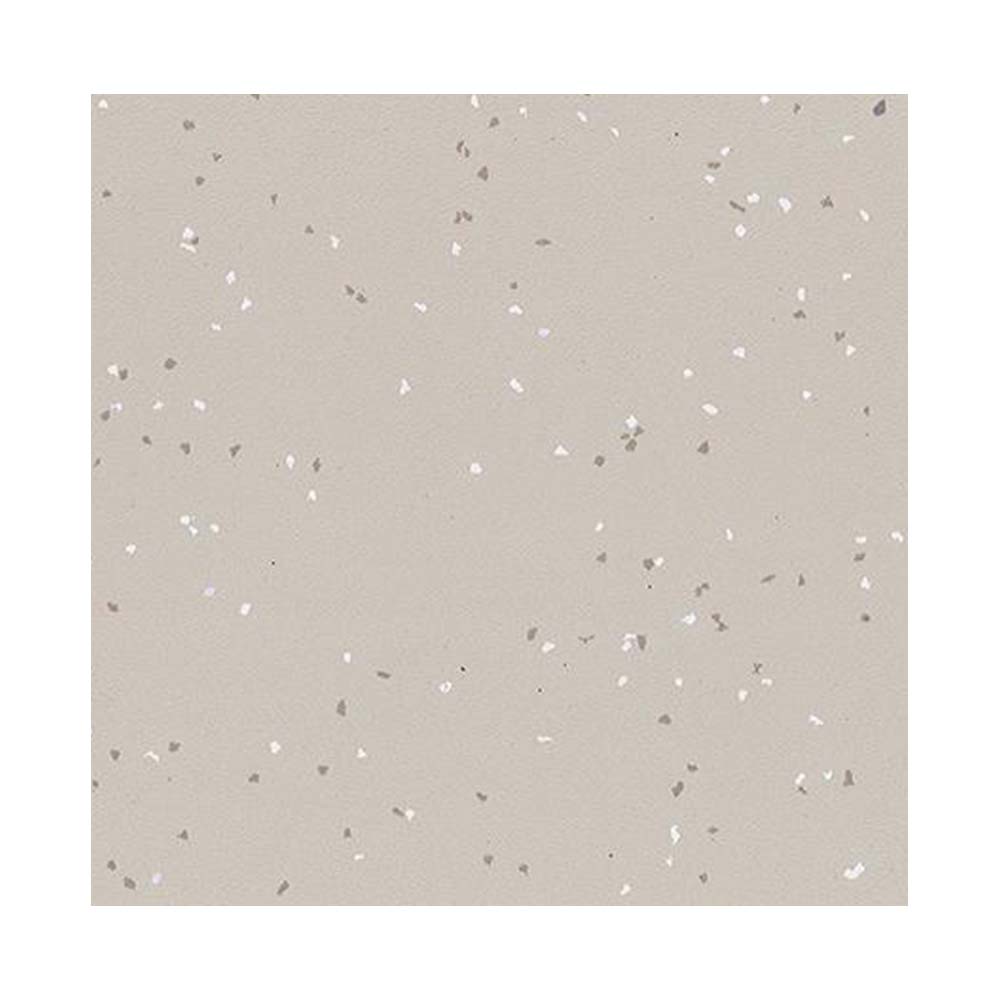

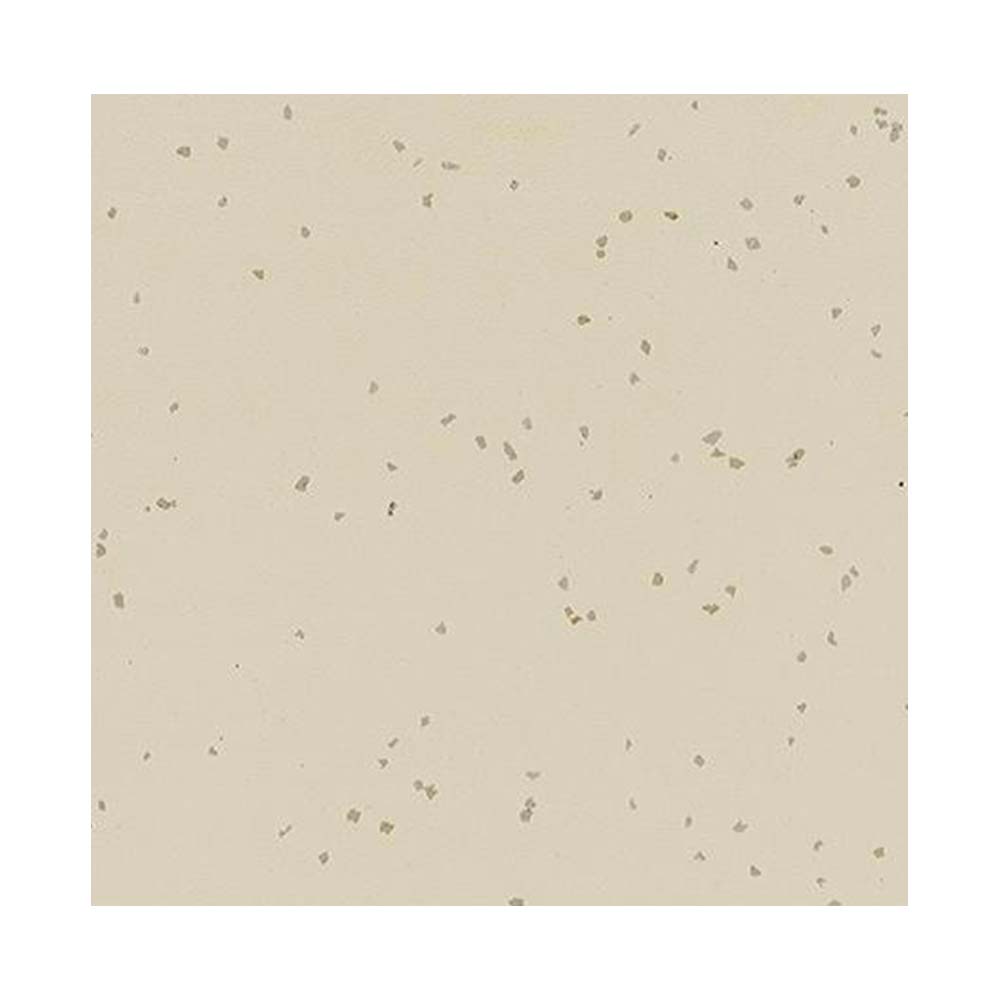

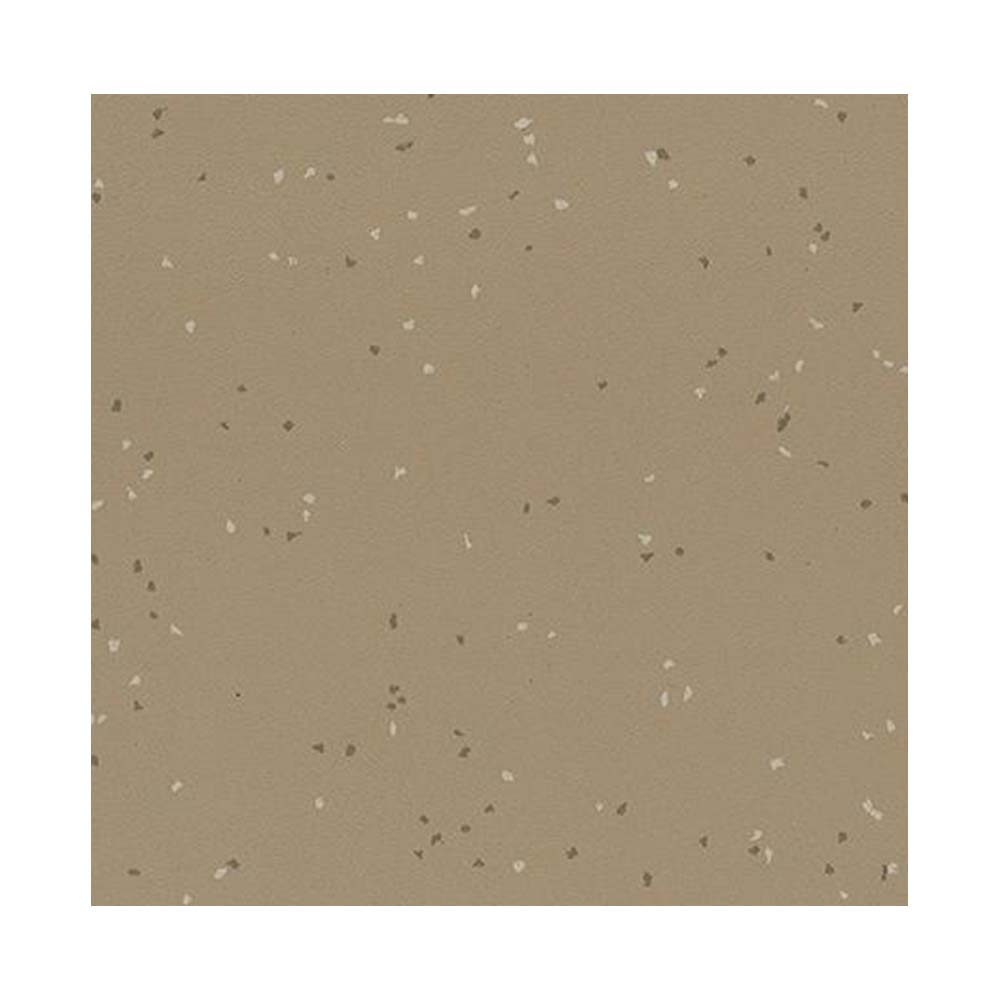

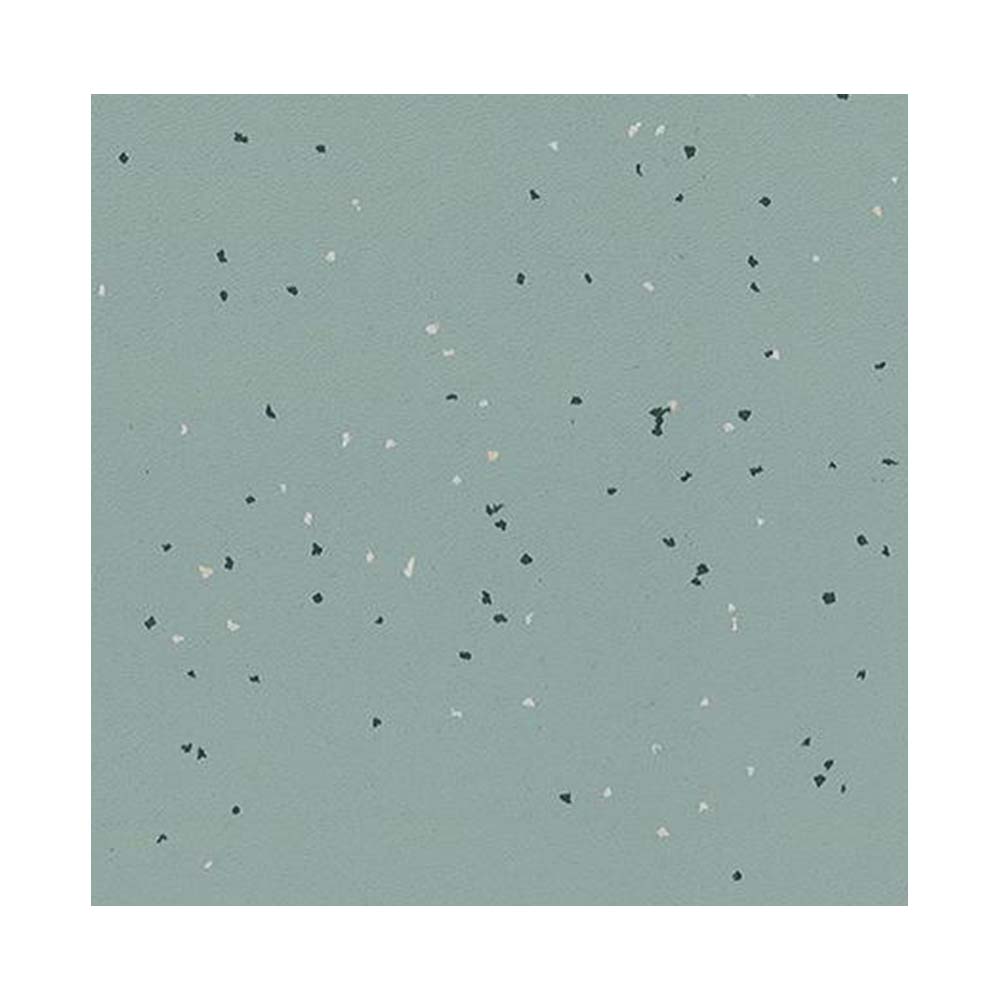

- 14 calming colors
Used In
- Clinical and lab spaces
- Medical and acute care
- Therapy and rehab
- Multi-purpose rooms and courts
- Locker rooms and restrooms
- Common areas, retail and public spaces
- Corporate offices
- Childcare and play zones
Looking to expand your setup? Explore more Ecore Equipment for your training.
- 7 mm calendered rubber roll flooring
- 58 in (1.47 m) wide rolls
- PUR-coated, PVC-free surface
- Heat-welded seams
- 11.2% force reduction
- FloorScore certified
- Performance
- Force Reduction: 11.2%
- Energy Restitution: 67.4%
- Coefficient of Friction (ASTM D2047): >0.6
- Recovery after Static Load (ASTM F970): 0.003 in
- Impact Insulation Class (ASTM E492): 52
- Delta IIC (ASTM E2179): 24
- Sound Transmission Class (ASTM E90): 53
- Comfort & Features
- Surface Layer: 2 mm calendered rubber with factory-applied PUR coating
- Base Layer: 5 mm vulcanized composition rubber (VCR)
- Certification: FloorScore, CA 01350
- Recycled Content: 60% post-consumer
- Flammability, Critical Radiant Flux (ASTM E648): Class I
- Antimicrobial Resistance (ASTM G21): Pass
- Warranty: Limited 5 Year
- Dimensions & Capacity
- Thickness: 7 mm (0.28 in)
- Width: 58 in (1.47 m)
- Standard Roll Length: 30 LF
