Ecore PlayGuard Playground Tiles | 2.5 in Molded Rubber Safety Surfacing in 15 Colors
Ecore PlayGuard Playground Tiles are 24 in x 24 in (0.61 m x 0.61 m) molded rubber tiles, 2.5 in (63.5 mm) thick, that bond a dense 2.5 mm vulcanized composition rubber (VCR) and EPDM wear layer to a footed VCR base. They are made for playgrounds, rooftops, patios, recreation spaces, and school or daycare grounds, with 74.9% force reduction and 44.4% energy restitution.
Shock Absorption, Slip Resistance & Float-Down Installation
The molded footed base provides strong shock absorption and noise reduction, and the surface is slip resistant. Tiles install over Ecore's Quad Blok system, which lets the floor float, and are available with up to 10 ft critical fall height over polyfoam (5 ft fully adhered or on compacted aggregate, 4 ft on concrete or asphalt). Choose from eleven EPDM colors, or from pigmented and non-pigmented options for outdoor use. Custom logos, designs, and colors are available on EPDM tiles, built into the wear layer so patterns do not flake, chip, or peel.
- 2.5 in (63.5 mm) molded tile in 24 in x 24 in (0.61 m x 0.61 m) format
- Dense 2.5 mm VCR and EPDM wear layer on a footed VCR base
- Force reduction of 74.9% with 44.4% energy restitution
- Critical fall height of up to 10 ft over polyfoam
- Slip-resistant surface with coefficient of friction of 0.8
- Quad Blok installation system for a floating floor
- Wheelchair accessibility pass (ASTM F1951-08)
- Custom logos, designs, and colors available on EPDM tiles
- Fifteen colors, including pigmented and non-pigmented options
Used In
- Playgrounds
- Rooftops and patios
- Recreation spaces
- Daycare and after-school activity grounds
- Schools
- Rehabilitation centers
Looking to expand your setup? Explore more Ecore Equipment for your training.
- 2.5 in molded rubber playground tile
- 24 in x 24 in (0.61 m x 0.61 m) format
- 74.9% force reduction
- Critical fall height of up to 10 ft
- Slip-resistant surface
- Quad Blok floating installation
- Custom logos available on EPDM tiles
- Fifteen color options
- Performance

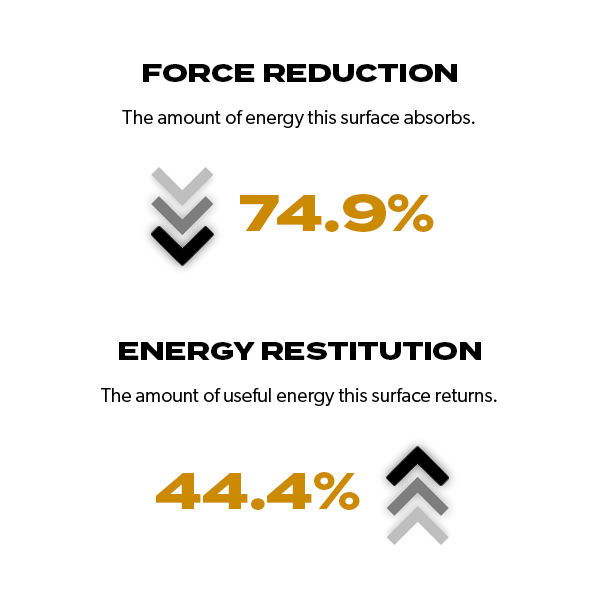

- Force Reduction: 74.9%
- Energy Restitution: 44.4%
- Coefficient of Friction: 0.8 (ASTM D2047, wear layer only)
- Density: 58 lb/ft³ pigmented and non-pigmented; 80 lb/ft³ EPDM (ASTM D297, wear layer only)
- Tensile Strength: 180 lb/in² pigmented and non-pigmented; 250 lb/in² EPDM (ASTM D412, Die C)
- Elongation at Break: 50% pigmented and non-pigmented; 70% EPDM (ASTM D412, Die C, wear layer only)
- Abrasion: Less than 0.200 g lost (ASTM D3389, wear layer only)
- Flammability: 8 of 8 samples passed (ASTM D2859)
- Wheelchair Accessibility: Pass (ASTM F1951-08)
- Lead Content: Pass (US EPA Method 3052:1996)
- Comfort & Features
- Wear Layer: Dense 2.5 mm vulcanized composition rubber and EPDM
- Base Layer: Molded footed vulcanized composition rubber
- Installation: Ecore Quad Blok floating system, or adhered
- Custom Options: Custom logos, designs, and colors on EPDM tiles
- Indoor Use: EPDM colors only; pigmented and non-pigmented tiles are not recommended indoors
- Dimensions & Capacity

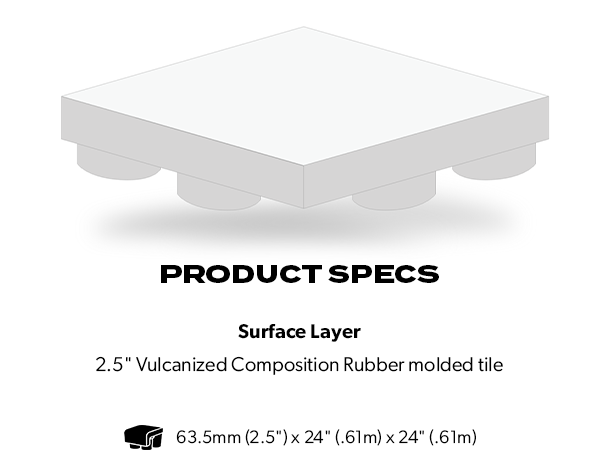

- Tile Size: 24 in x 24 in (0.61 m x 0.61 m)
- Tile Thickness: 2.5 in (63.5 mm)
- Quad Blok Size: 17.5 mm H x 8 in x 8 in (17.5 mm H x 203 mm x 203 mm)
- Adhesive: One 28 oz tube per 28 Quad Bloks
- Critical Fall Height: 10 ft over 2-1/2 in or 2-1/4 in polyfoam; 5 ft fully adhered or Quad Blok on compacted aggregate; 4 ft Quad Blok on concrete or asphalt

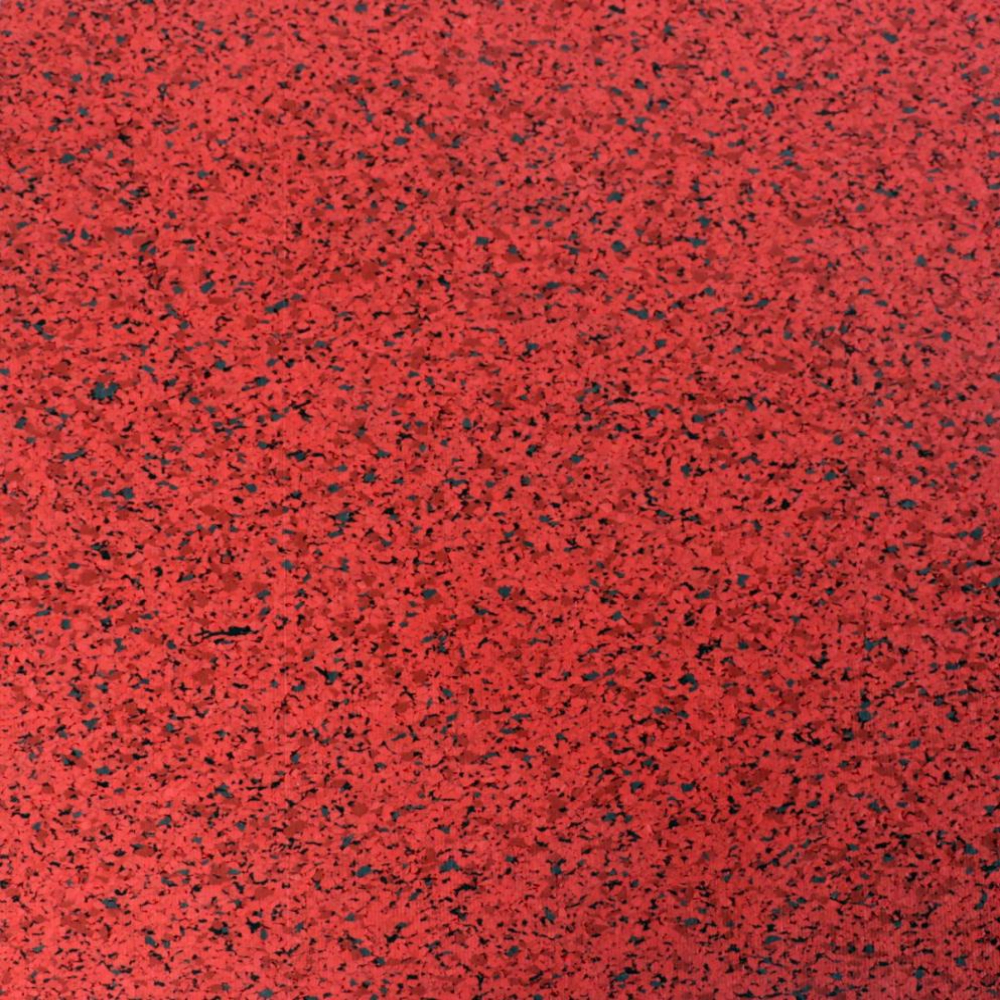

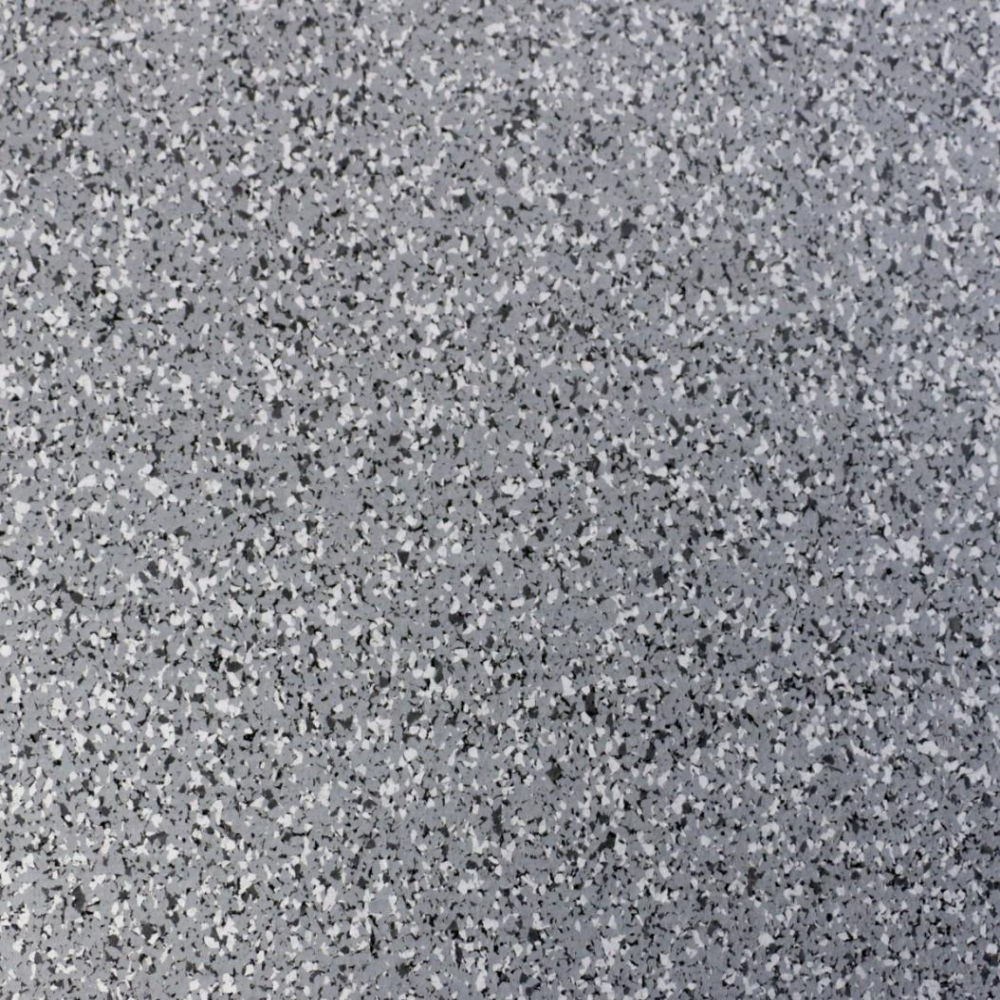

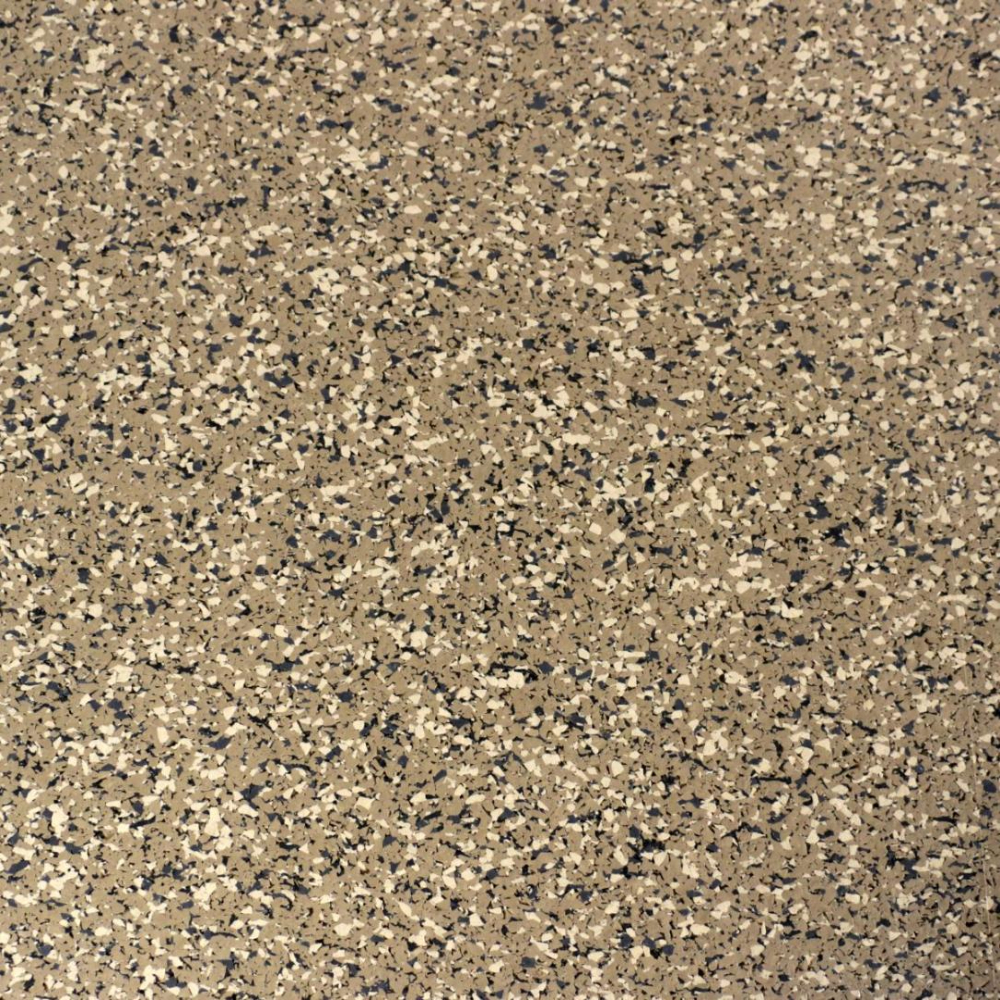

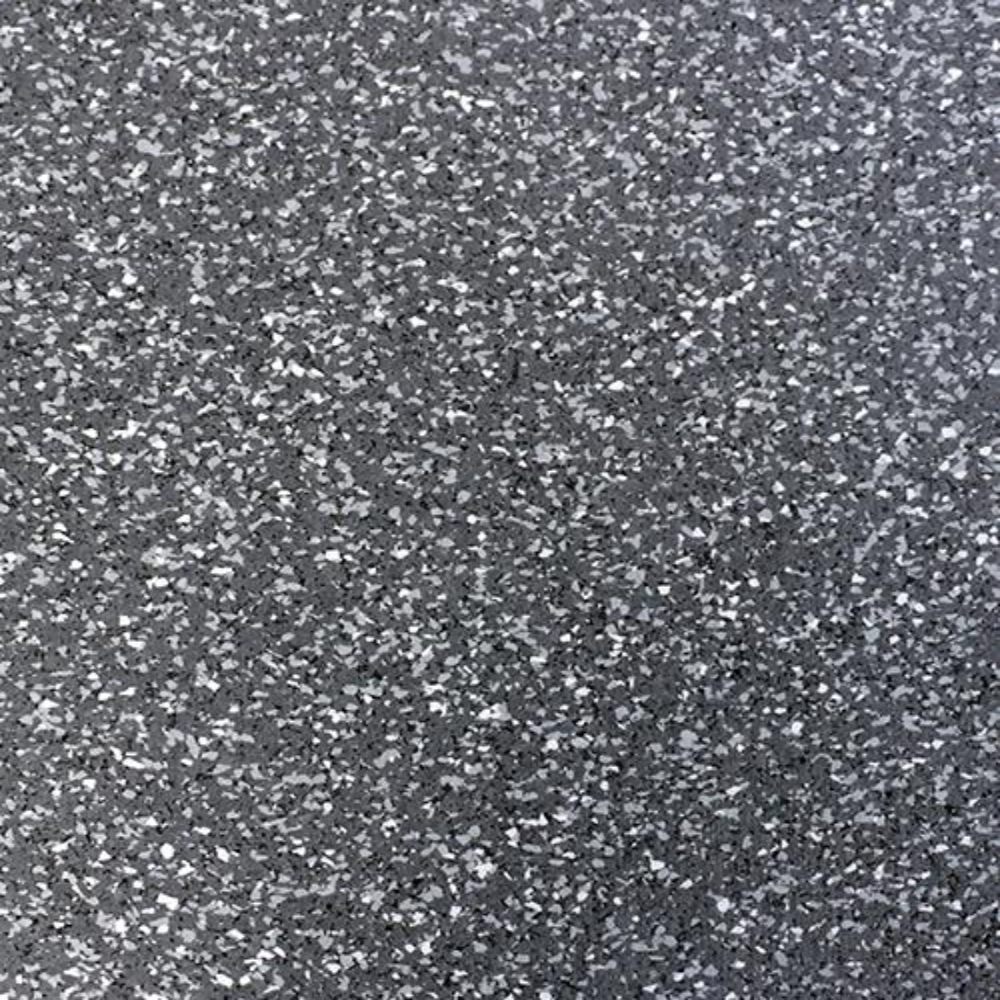

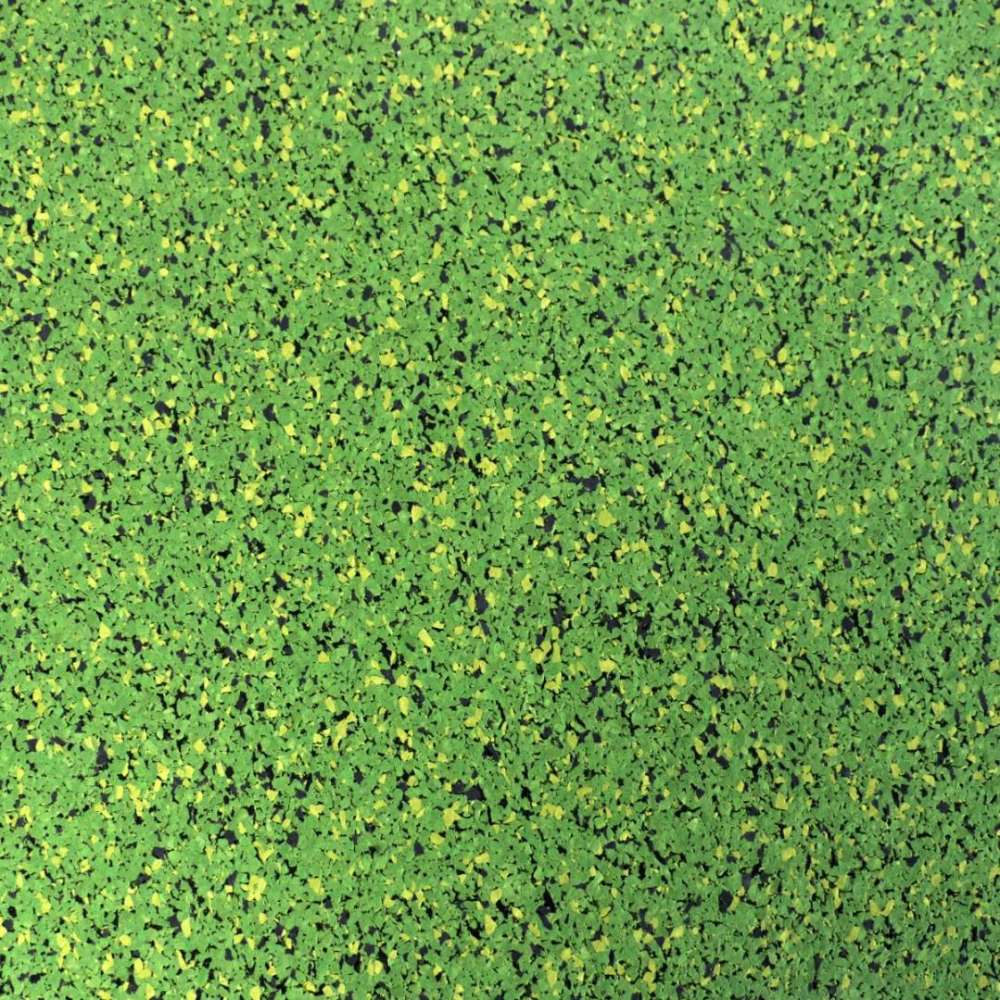

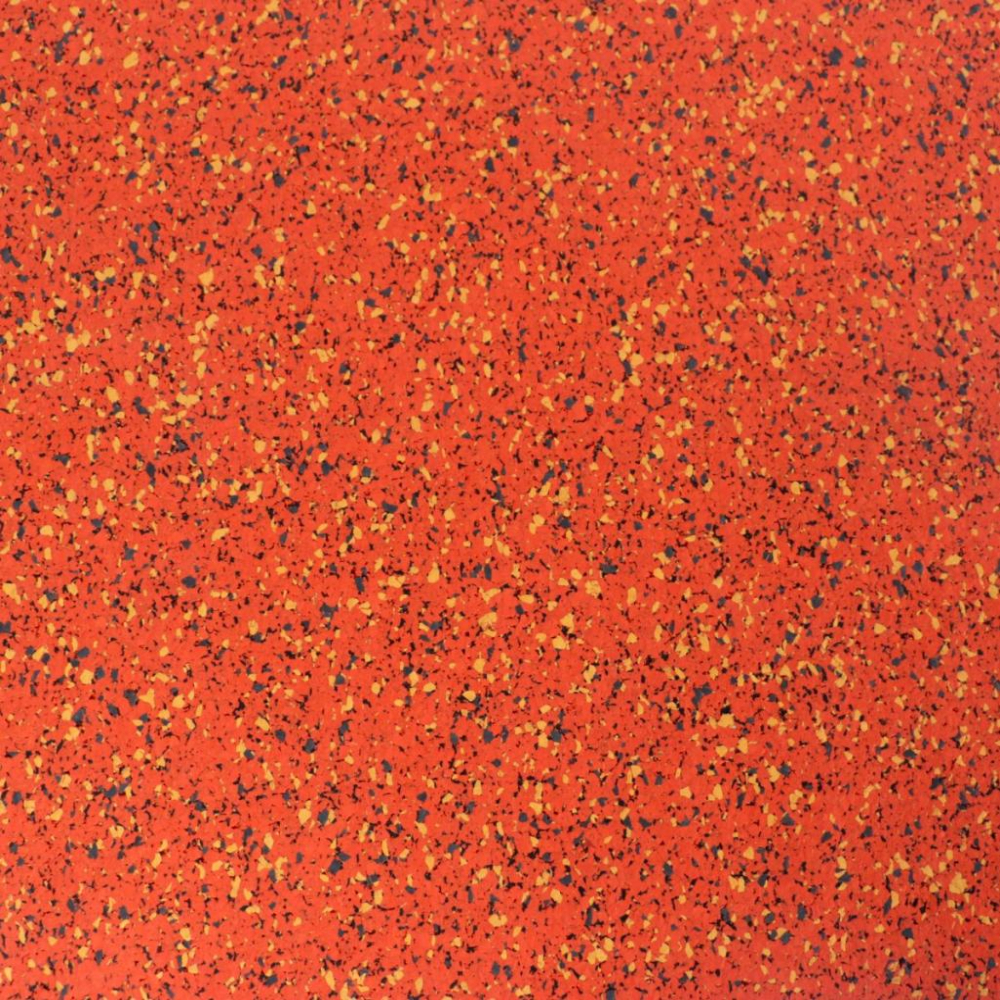

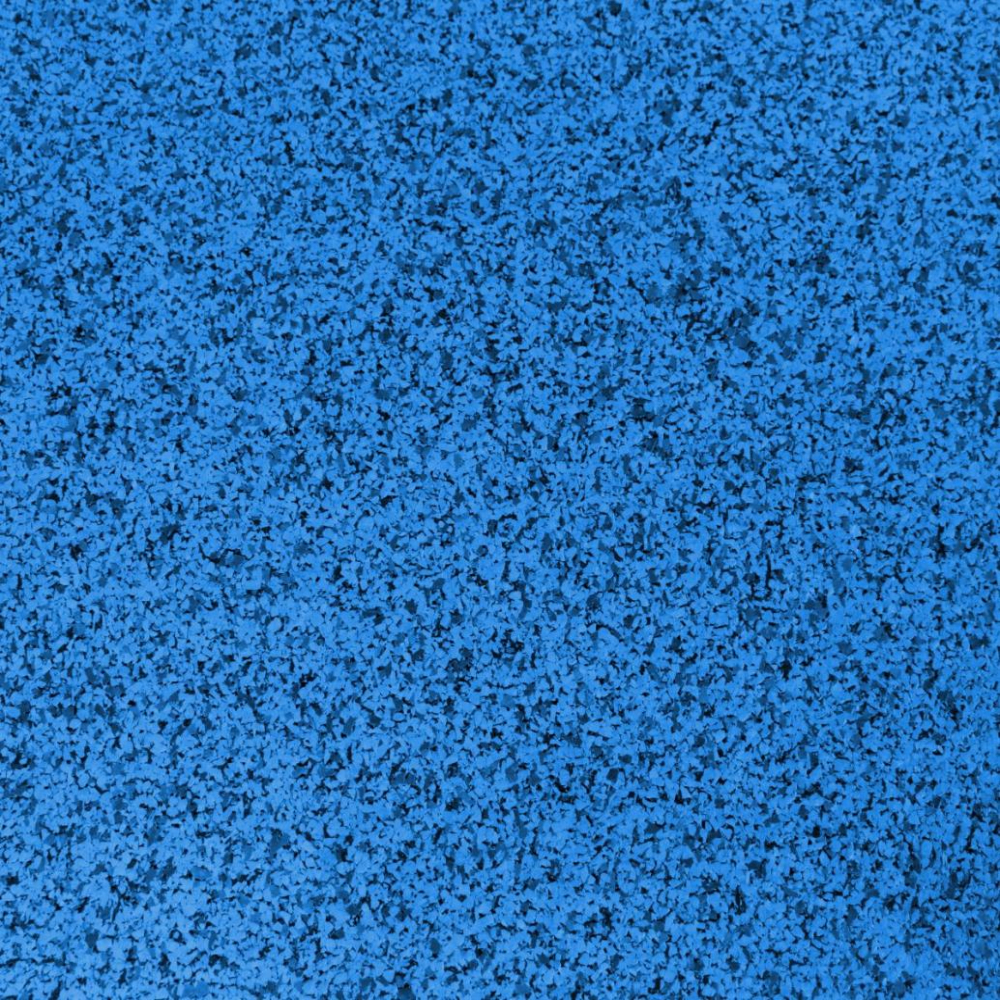

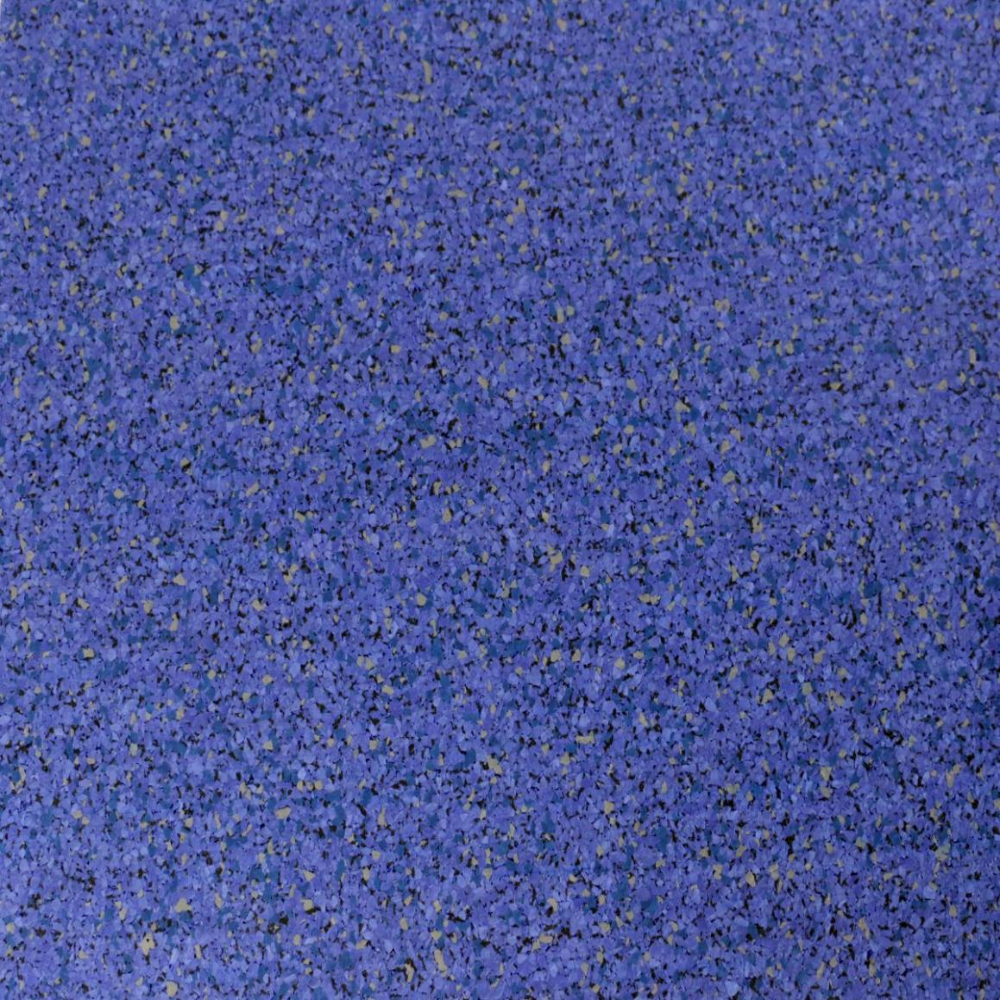

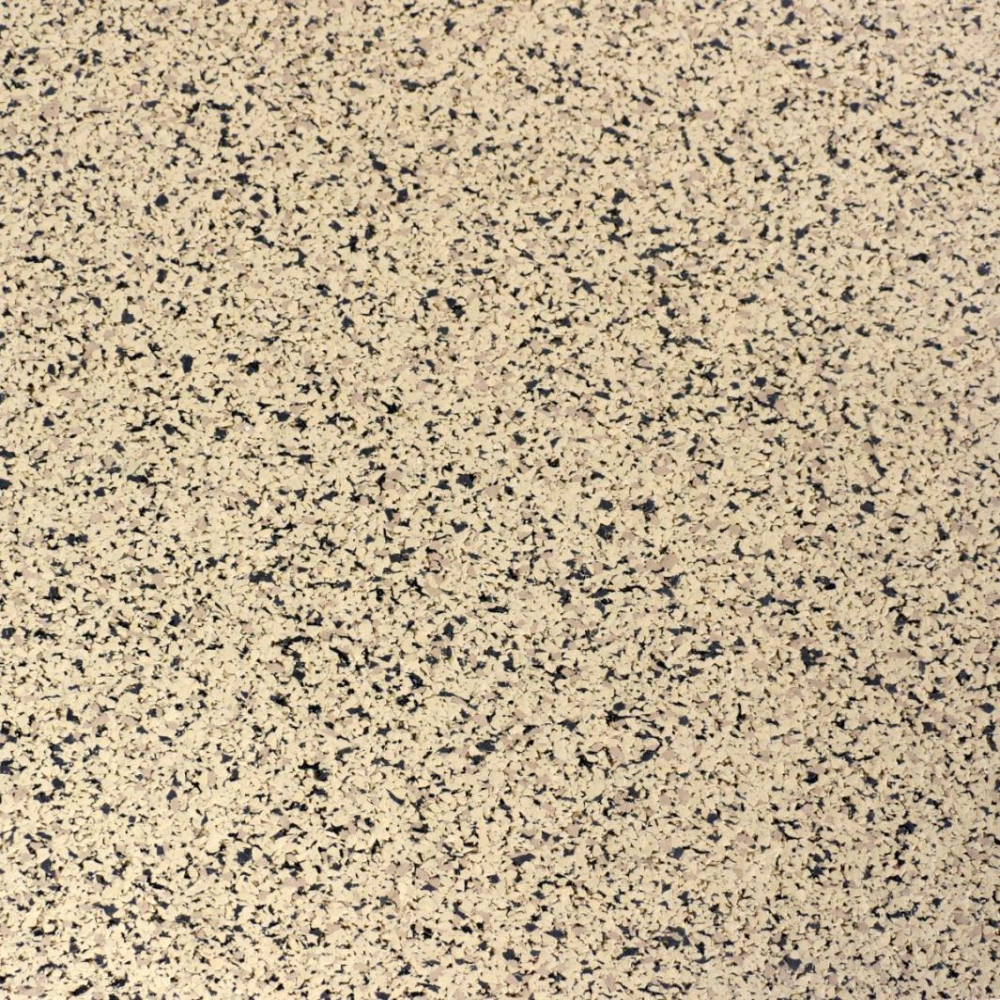

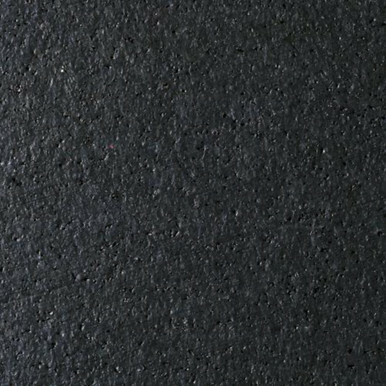

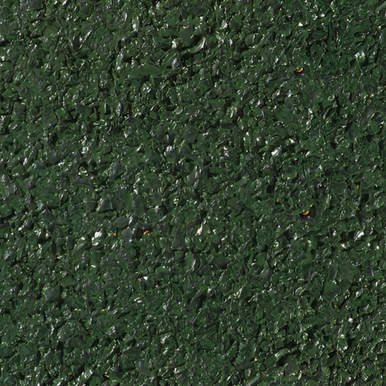

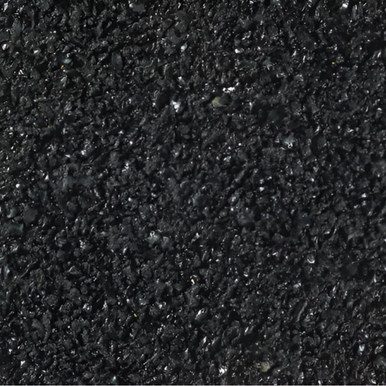

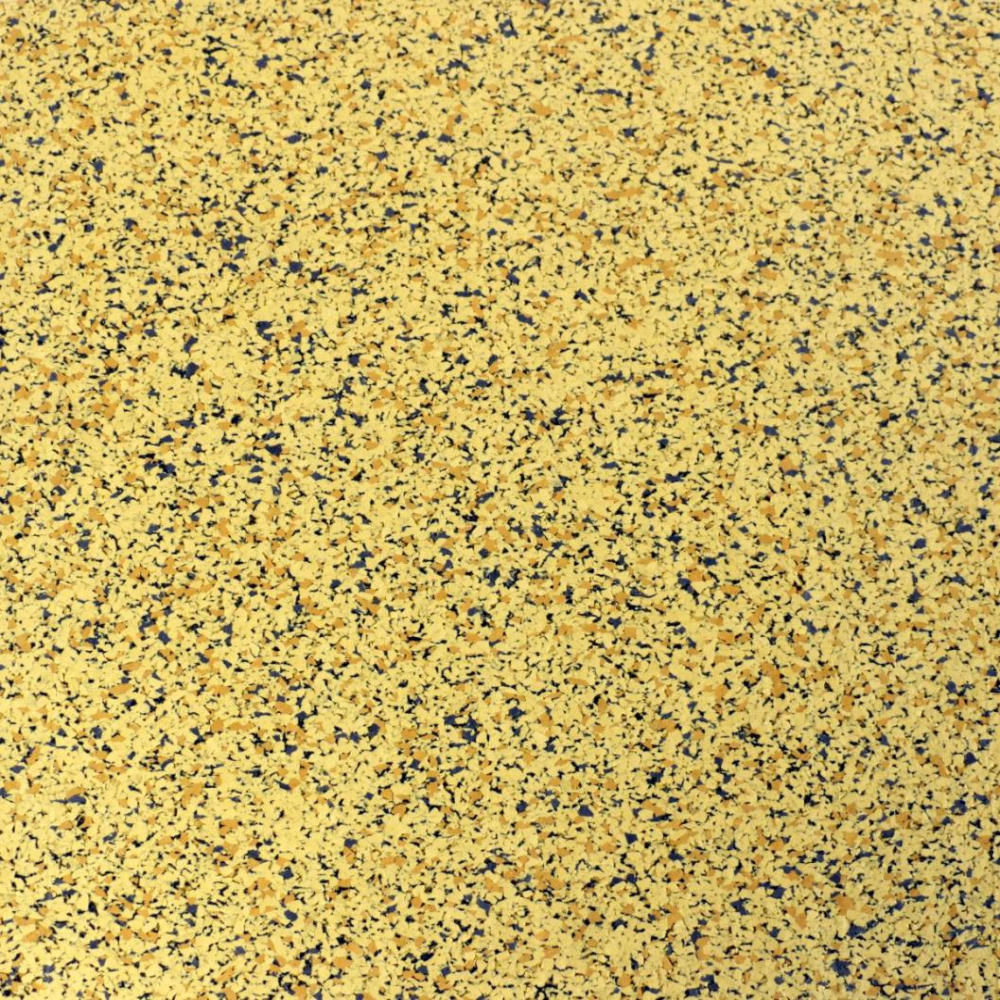

- Colors: EPDM: Licorice (PG79), Rock Candy 2 (PG65A), Sour Apple 2 (PG63A), Lemonade (PG76), Midnight (PG50), Orangesicle (PG77), Grape Slushie (PG78), Cherry Blast 2 (PG61A), Caramel Corn 2 (PG66A), Funnel Cake 2 (PG67A), Blueberry Pie 2 (PG62A). Pigmented: Green (PG43), Red (PG42), Gray (PG41). Non-pigmented: Solid Black (PG40)
